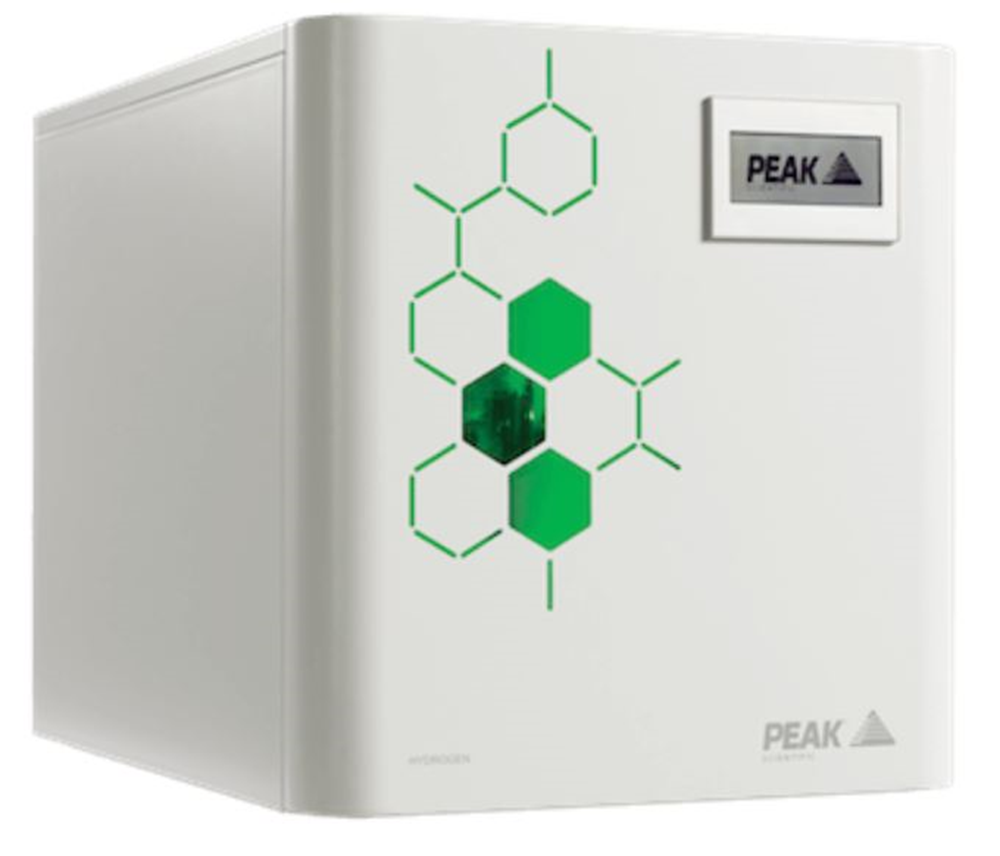

Precision Hydrogen generators are designed to provide the hydrogen gas required for carrier gas and detectors requiring Hydrogen fuel gas, such as FID and FPD. One generator is
capable of supplying multiple GCs, and can be suited to individual customers’ needs, depending on the flow requirement. These generators utilize a Proton Exchange Membrane (PEM) togenerate Hydrogen gas from deionized water, with a pressure swing adsorption (PSA) dryer used to remove residual moisture from the gas. Precision Hydrogen gas generators come with various safety features as standard, giving you complete peace of mind in the laboratory and a far safer, dependable and more convenient alternative to cylinder gas.

Part Number :

For Hydrogen Trace  250cc:  64-0250

For Hydrogen Trace 500cc): 64-0500

 For Hydrogen Trace1200cc: 3301768 (110v/230v)

Technical Specifications

Max Flow Rate:

250 cc/min (Model Hydrogen Trace 250cc),

500 cc/min (Model Hydrogen Trace 500cc),

1200 cc/min (Model Hydrogen Trace 1200cc)

Max Pressure: 100 psi / 6.9 bar
Purity: 99.9999%
Dew Point: -75 °C / -103 °F
Gas Outlets: 1 x 1/8” Swagelok compression fitting
Water Purity Requirement: <1.0μ Siemens/cm OR >1 Mohm-cm
Water Consumption:

0.17 - 0.46 L/day ( Model Hydrogen Trace  250cc)

0.4 - 1.2 L/day (Model Hydrogen Trace 500cc)

up to 2.1 L/day (Model Hydrogen Trace 1200cc)
Operating Temperature: 10°C - 35°C / 50°F - 95°F
Electrical Requirements:

110 / 230 V 50 / 60 HZ max 6 A  (For Hydrogen Trace  250cc and Hydrogen Trace 500cc)

110 / 230 V 50 / 60 HZ 2.3 - 4.8 A (For  Hydrogen Trace 1200cc)
Power Consumption:

477 Watts (For Hydrogen Trace  250cc ),

787 Watts (For Hydrogen Trace 500cc),

787 Watts (For  Hydrogen Trace 1200cc)
Heat Output: up to 1000 BTU/ hr
Generator Dimensions (WxDxH): 406 x 380 x 540 mm / 16 x 15 x 21.3’’
Generator Weight:

29 Kg (64 lbs) (For Hydrogen Trace  250cc and Hydrogen Trace 500cc)

38 Kg (83.8 lbs) (For  Hydrogen Trace 1200cc)
Noise Level: Silent in operation
